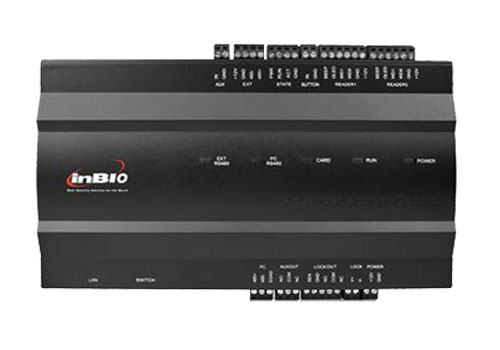

IP-based multi door controller InBio carries out the matching of fingerprints on the panels. The FR Series of readers transmit fingerprint templates to InBio vis RS485 for fast and accurate matching with templates stored in the database. Wiegand inputs are also provided for traditional RFID readers. InBio controllers can be installed easily on your network and support both TCP/IP and RS-485 communication. Auto-discovery tool allows setting and modification of network parameters directly and easily.
Support up to 3000 fingerprint templates, 30,000 badge users and store up to 100,000 events and transactions. Data is preserved if power is lost. Controller continues to operate if network connection is interrupted.Access additional control and interface. After programming, auxiliary relays can be functioned as lights, alarms and intrusion detection panels. Extra locking devices or gate controllers can be accessed.
PDF CatalogSend Requirement| eSSL optical sensor |
| X990 Color TFT screen with GUI interface for ease of use |
| Stores 10000 templates and 100000 transactions |
| Reads fingerprint and/or PINS |
| Optional integrated proximity or smart card reader |
| Built-in USB port allows for manual data transfer when network isn't available |
| Built-in serial and Ethernet ports |
| Multi-language support |
| SDK available for OEM customers and software developers |
| Optional: Wi-Fi, GPRS |
| Fingerprints templates: 10000 | Card Storage: 10000 |
| Transaction storage: 1,00,000 | Card reader: Inbuilt proximity card reader (optional Mifare, HID prox) |
| CPU: 800 MHz 32 bit Microprocessor | Fingerprint Sensor: 500 DPI Optical sensor |
| FAR ≤ 0.0001% | FRR ≤ 1% |
| Identification Speed: < 0.5 sec | Algorithm Version: 10 |
| Display: 3" Color TFT | Keypad: Yes |
| LED Indicator: Green/Red | Schedule Bell/Speaker: Mini Speaker |
| Communication: TCP/IP, USB (Optional: Wi-Fi, GPRS, GPRS+GPS) | Push Data: Yes (supports both static IP and domain server) |
| Standard Features: Work code, SMS, DLST, Self-service query, Status Switch | Power Supply: DC 12V, 1.5Amp |
| Operating Temperature: 0°C to 45°C | Operating Humidity: 20% - 80% |
| Wiegand: In & Out, both 26 or 34 bit (With or without site code) | Relay: 12V relay for EM lock, Bolt Lock or Strike Lock |
| Support Exit Readers: 101 HE, FR 1200, Push Button, KR500, Notouch, KR503 |
